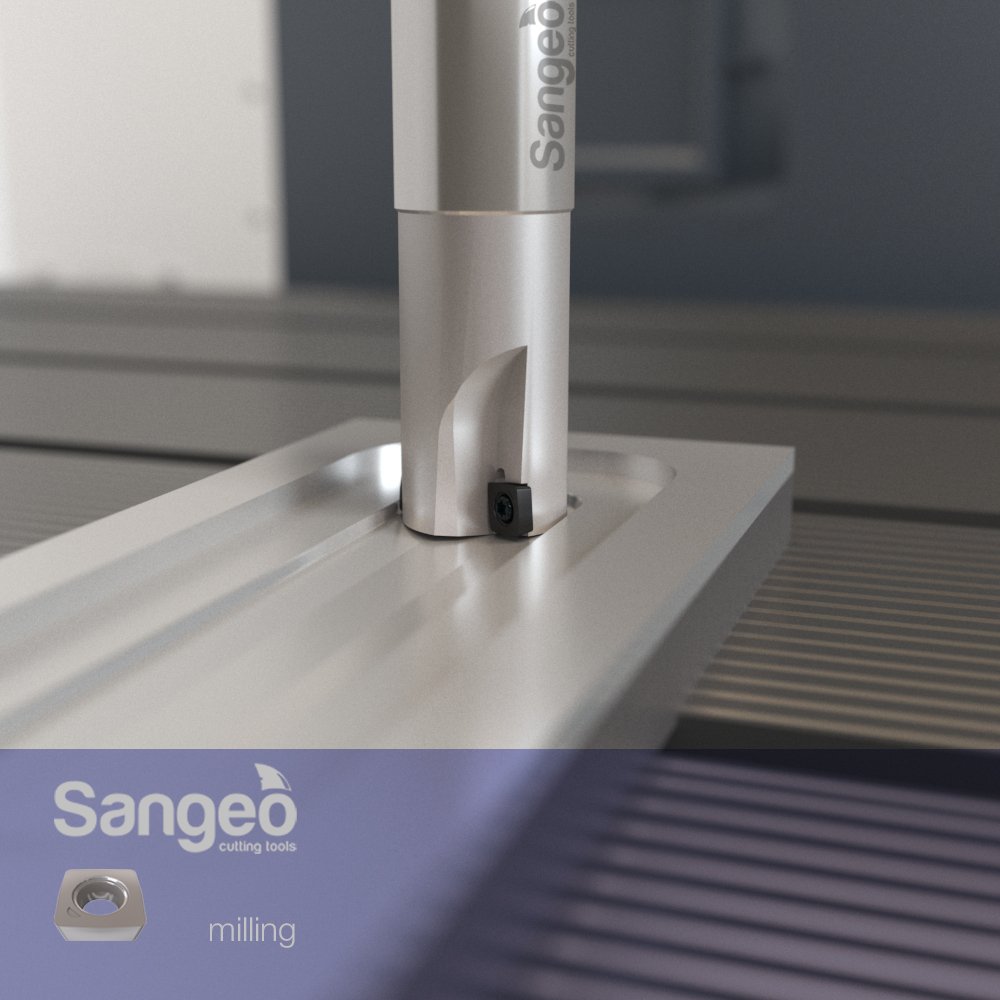

Name: SOMW High Feed Indexable Milling Inserts (Sangeo)
SKU: SOMW080315-FHPS5925
Price: 6.50 GBP
Availability: InStock

Compare

16mm APMT 90 Degree End Mill for APKT11/APMT11 inserts – MSAP-16-160-11-15-2T-C (Sangeo)

£39.90 exc. VAT

The MSAP-16-160-11-15-2T-C End Mill from Sangeo provides low cutting resistance and smooth chip flow with true 90 degree perpendicular milling. Holders range from 16mm - 33mm diameter and take the APKT/APMT inserts.

End Mill Style.
Economical 90 Degree, square shoulder milling with ISO inserts.
High rake angle provides low cutting resistance and smooth chip flow.
Insert grades for steel, stainless steel, cast iron, exotics and non-ferrous materials.
Holders &, inserts compatible with other manufacturers' tools.
Low cost insert and holders.
Perfect tool for low cost general machining.
Suitable for use with Sangeo APMT/APKT insert.

DESCRIPTION	DIMENSIONS
DESCRIPTION	ØD	L	I	Ød	Z	ap
MSAP 16-160-11-15-2T-C	16	160	40	15	2T	11

16mm APMT 90 Degree Screwed Shank End Mill for APKT11/APMT11 inserts – MMAP16-M08-11-2T-C (Sangeo)

£45.90 exc. VAT

The MMAP 16-M08-11-2T-C Screwed Shank End Mill from Sangeo provides low cutting resistance and smooth chip flow with true 90 degree perpendicular milling. Holders range from 16mm - 25mm diameter and take the APKT11/APMT11 inserts.

Screwed Shank End Mill Style.
Economical 90 Degree, square shoulder milling with ISO inserts.
High rake angle provides low cutting resistance and smooth chip flow.
Universal grade for steel, stainless and cast iron.
Holders &, inserts compatible with other manufacturers tools.
Low cost insert and holders.
Perfect tool for low cost general machining.

DESCRIPTION	DIMENSIONS
DESCRIPTION	ØD	L	I	Ød	Z	M	ap
MMAP 16-M08-11-2T-C	16	50	28	8.5	2T	8	11

20mm RDHX/RDMW End Mill for RDHX/RDMW/RDMX inserts – MSRD-20-120-10-20-2T (Sangeo)

£39.90 exc. VAT

The MSRD-20-120-10-20-2T End Mill from Sangeo provides low cutting resistance and smooth chip flow with true perpendicular milling. Holders range from 20mm - 40mm diameter and take the RDHX10/RDMW10/RDMX10 inserts.

End Mill Style.
High rake angle provides low cutting resistance and smooth chip flow.
Insert grades for steel, stainless steel, cast iron, exotics and non-ferrous materials.
Holders &, inserts compatible with other manufacturers' tools.
Low cost insert and holders.
Perfect tool for low cost general machining.
Suitable for use with Sangeo APMT/APKT insert.

DESCRIPTION	DIMENSIONS
DESCRIPTION	ØD	L	I	Ød	Z	ap
MSRD 20-120-10-20-2T	20	120	55	20	2T	10

25mm APMT 90 Degree Screwed Shank End Mill for APKT16/APMT16 inserts – MMAP-25-M12-16-2T-C (Sangeo)

£49.90 exc. VAT

The MMAP-25-M12-16-2T-C Screwed Shank End Mill from Sangeo provides low cutting resistance and smooth chip flow with true 90 degree perpendicular milling. Holders range from 25mm - 42mm diameter and take the APKT16/APMT16 inserts.

Screwed Shank End Mill Style.
Economical 90 Degree, square shoulder milling with ISO inserts.
High rake angle provides low cutting resistance and smooth chip flow.
Universal grade for steel, stainless and cast iron.
Holders &, inserts compatible with other manufacturers tools.
Low cost insert and holders.
Perfect tool for low cost general machining.

DESCRIPTION	DIMENSIONS
DESCRIPTION	ØD	L	I	Ød	Z	M	ap
MMAP 25-M12-16-2T-C	25	60	43	16	2T	12	16

40mm Alpha Mill 90 Degree Face Mill for APMT Inserts – MFAP-90040R-16-4T (Sangeo)

£85.00 exc. VAT

The MFAP-90040R-16-4T series Alpha Mill is a 90 degree face mill style milling body that takes APMT inserts. Suitable for Face Milling, Shoulder Milling, Slotting, Ramping and Helical Cutting. The Alpha Mill offers the smoothest cutting action and the widest material application range (steels, stainless steel, cast iron, aluminium, exotics). It is the best ALL-ROUND system in terms of general performance across ALL metals.

Helical cutting 90 degree face mill
Low cutting resistance, ideal for lightweight machines or difficult to cut materials
For use with APMT inserts which feature an Alpha Curve geometry for the smoothest cutting action
Ideal for shoulder milling, facing, ramping, helical cutting and slotting
Reduced machine stress
Excellent surface finish
Wide range of cutting widths and depths
Wide chip pocket for better chip control

The MFAP-90040R-16-4T Face Mill from Sangeo provides low cutting resistance and smooth chip flow with true 90 degree perpendicular milling. Holders range from 40mm - 200mm diameter and take the APMT16/APKT16 inserts.

DESCRIPTION	DIMENSIONS
DESCRIPTION	ØD	Ød	H	ap	Z
MFAP 90040R-10-5T	40	16	40	10	5T

DESCRIPTION	DIMENSIONS
DESCRIPTION	ØD	Ød	H	ap	Z
MFAP 90040R-16-4T	40	16	40	16	4T

APMT1035PDER-RM PS5915 90 Degree Alpha Mill Indexable Milling Inserts (Sangeo)

£4.50 exc. VAT

10 pieces (Min. Order)

APMT Alpha Mill inserts have a long tool life at high speed, high feed and deeper cutting due to a low cutting resistance and strong cutting edge making them ideal for 90-degree helical milling. The APMT's low cutting resistance is achieved by the unique Sangeo insert design, which utilises the Alpha Curve cutting edge and a convex/concave design. Minimum interference for better chip control Chip breaker All positive shaped sides to minimize interference High rake angle Decreasing cutting resistance Sharp cutting edge The APMT1035PDER-RM PS5915 Indexable Carbide Milling Inserts feature tough PVD-coated MT-TiCN+TiC+Al2O3+TiN layer on a P05-P25 substrate for very high toughness. The PS5915 milling grade is ideal for medium and roughing of steel. Sangeo’s range of milling inserts is made from a fine micro-grain carbide substrate for excellent toughness and performance.

APMT style style carbide milling inserts
PS5925 / PS5915 Grade: Steel/Hard Steel
Positive geometry
Parallelogram shape
Milling grade for medium and roughing of steel
New coating layer with superior wear resistance with high toughness substrate

RDHX1003M0 PS7925 Indexable Milling Insert (Sangeo)

£5.00 exc. VAT

10 pieces (Min. Order)

RDHX1003M0 PS7925 Indexable Carbide Milling Inserts feature tough PVD coated MT-TiCN+TiC+α-Al2O3 layer on a M20-M30 substrate for very high toughness. The PS7925, medium to roughing of hard to cut materials and stainless steel. Sangeo’s range of milling inserts are made from a fine micrograin carbide substrate for excellent toughness and performance.

RDHX style style carbide milling inserts
PS7925 / PS7915 Grade: Stainless Steel
Positive geometry
Round shape
Milling grade for medium to roughing of hard to cut materials and stainless steel
2-4 micron Nano AlCrN AlCrSiN coating

RDHX12T3M0 PS7925 Indexable Milling Insert (Sangeo)

£5.50 exc. VAT

10 pieces (Min. Order)

RDHX12T3M0 PS7925 Indexable Carbide Milling Inserts feature tough PVD coated MT-TiCN+TiC+α-Al2O3 layer on a M20-M30 substrate for very high toughness. The PS7925, medium to roughing of hard to cut materials and stainless steel. Sangeo’s range of milling inserts are made from a fine micrograin carbide substrate for excellent toughness and performance.

RDHX style style carbide milling inserts
PS7925 / PS7915 Grade: Stainless Steel
Positive geometry
Round shape
Milling grade for medium to roughing of hard to cut materials and stainless steel
2-4 micron Nano AlCrN AlCrSiN coating

Add to wishlist

Add to cart

Quick view

Brand	Sangeo
Product Range	Indexable Milling Inserts

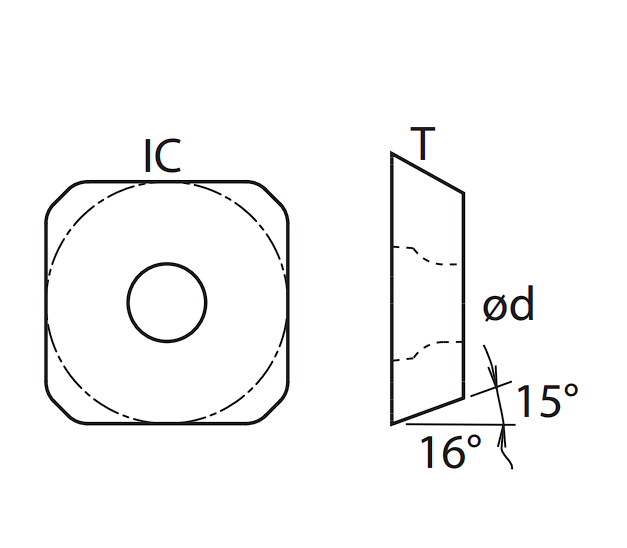

Insert Style	SOMW
Relief Angle	16°
Shape – Degrees	Square
Insert Geometry	Positive
Applicable Materials	Steel
Chipbreaker	FH
Grade Description	PS5925 (P15-P35 / M10-M20)
T	3,97
IC	12,7
Ød	5,16
ISO Code	SOMW 0803
