3PGX100404R-M PS5925 90 Degree Indexable Milling Inserts (Sangeo)
10 pieces (Min. Order)
3PGX100404R-M / 3PGX100408R-M PS5925 Indexable Carbide Milling Inserts. PS5925, feature tough PVD coated MT-TiCN+TiC+Al2O3+TiN layer on a P15-P35 / M10-M20 substrate for very high toughness. Sangeo’s range of milling inserts are made from a fine micrograin carbide substrate for excellent toughness and performance.- 3PGX style carbide milling inserts
- PS5925 / PS5915 Grade: Steel/Hard Steel
- Positive geometry
- Triangular shape
- The universal grade for interrupted machining of steel, cast-iron, hard to cut materials and stainless steel with stable machinability
- New coating layer with superior wear resistance with high toughness substrate

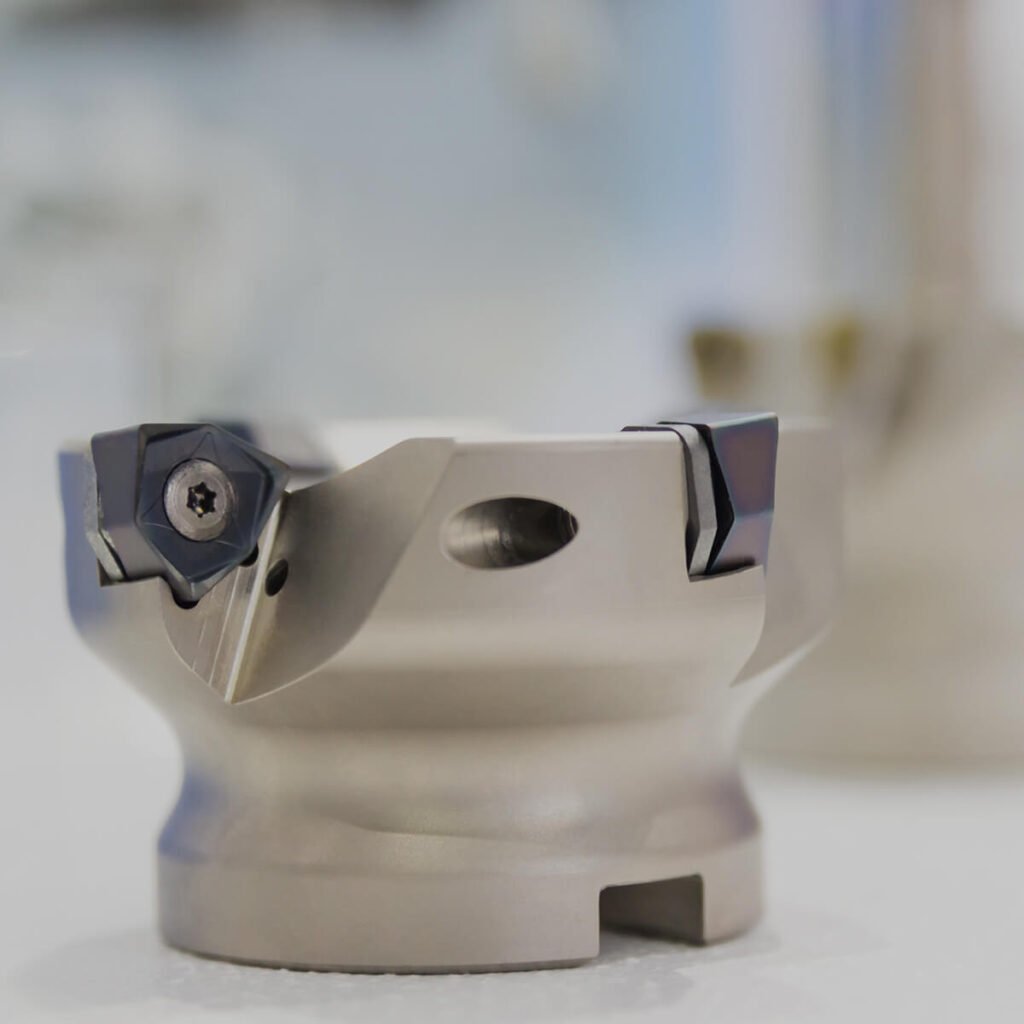

50mm WNMU 90 Degree Face Mill for WNMU inserts – MFWN-90050R-08-4T (Sangeo)
The MFWN-90050R-08-4T Face Mill from Sangeo provides low cutting resistance and smooth chip flow with true 90 degree perpendicular milling. Holders range from 50mm - 200mm diameter and take the WNMU (trigonal inserts with 6 helical cutting edges) inserts.
- Suitable for face milling, shoulder milling, slotting, ramping and helical cutting.
- Economy type face mill makes it perfect for low cost general machining.
- For 90°, Milling.
- Suitable for use with WNMU08 inserts.
- Coated inserts for general machining of Steel, Stainless Steel, Cast Iron &, Exotics.
| DESCRIPTION | DIMENSIONS | ||||
| ØD | Ød | H | ap | Z | |
| MFWN 90050R-08-4T | 50 | 22 | 40 | 8 | 4T |
8mm 2 Flute Coated Carbide Ball Nose Slot Drill – DXB2080-060-08 (Sangeo)
The DXB series PVD Coated Carbide milling cutters have a ball nose end profile with 2 flutes. These are ideal for high cutting on hardened (extreme) steel up to 55HrC. These endmills are available in diameters ranging from 1mm-20mm. The Sangeo DXB series Coated Carbide milling cutters have a ball nose end profile with 2 flutes. These slot drills have a plain shank and are available in diameters ranging from 1mm-20mm. These are ideal for general machining of steels up to HRc55, stainless steel, cast iron, copper and aluminium.
- High quality micrograin carbide.
- PVD Coating with high heat and wear resistance across a wide range of metals.
- Dry cutting on steels can increase tool life up to 50%
- Consistent and reliable performance in general machining conditions.
- Ball nosed with short flutes.
- Designed for milling of radius bottom slots, fillets and special contours
| ØD (Cutting Dia.) | 8 |
| ØD (Shaft Dia.) | 8 |
| l (Flute Length) | 20 |
| L (Overall Length) | 60 |
| r (Radius) | - |

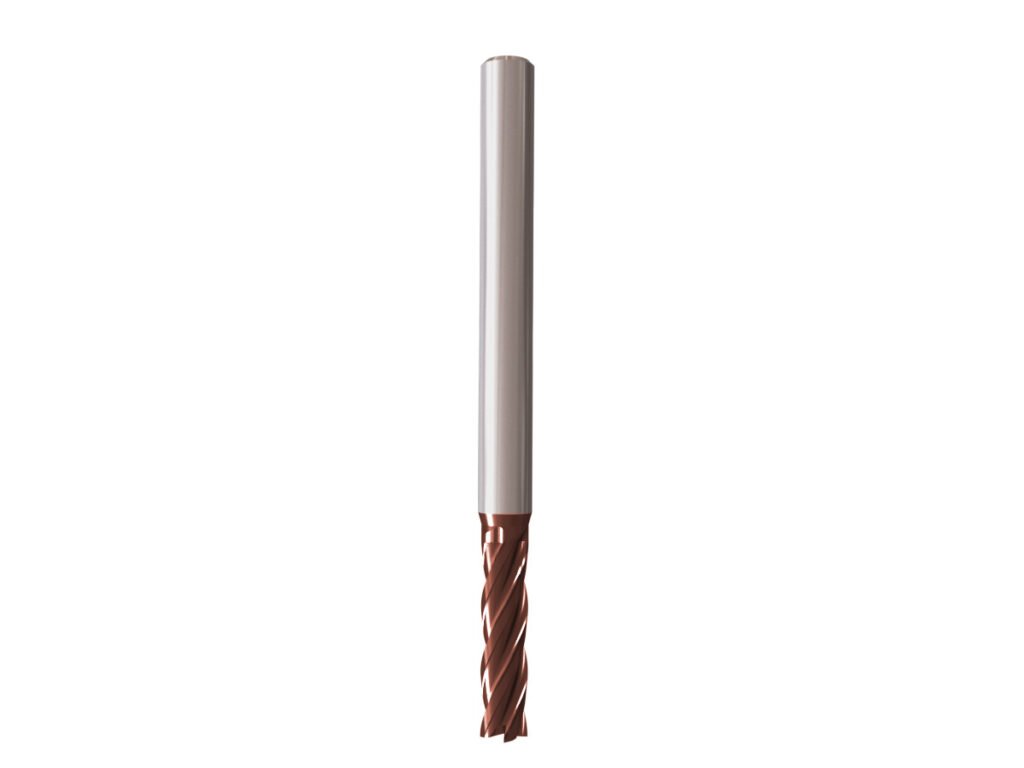

8mm 4 Flute PVD Coated DXF Mill Carbide End Mill – DXF4080-060-08 (Sangeo)
The Sangeo DXF series has 4 flutes and a plain shank. These end mills range in diameter from 1mm-20mm. They are ideal for the general machining of steels up to HRc55, Stainless Steel and Cast Iron.
- High quality micrograin carbide.
- Exclusive Sangeo PVD-Coating offers higher performance machining compared to standard TiALN coatings.
- Wide range of geometries including various flute styles and ball nosed options.
- Available on plain shanks.
- Suitable for wet or dry machining. Dry cutting on steels can increase tool life up to 50%.
- Consistent and reliable performance in general machining conditions on CNC machines.
| ØD (Cutting Dia.) | 8 |
| ØD (Shaft Dia.) | 8 |
| l (Flute Length) | 20 |
| L (Overall Length) | 60 |
| r (Radius) | - |
8mm x 0.5mm 4 Flute Coated Carbide Corner Radius Standard Length End Mill – DXC4080-060-08-R0.5 (Sangeo)
The Sangeo DXC series Coated Carbide milling cutters have 4 flutes and come with a plain shank. These corner radius end mills are available in diameters ranging from 2mm-20mm. These are ideal for general machining of steels up to HRc55, stainless steel, cast iron, copper and aluminium.
- High quality micrograin carbide.
- PVD coating with high heat and wear resistance across a wide range of metals.
- Dry cutting on steels can increase tool life up to 50%
- Consistent and reliable performance in general machining conditions.
- Designed for milling of radius bottom slots, fillets and special contours.
| ØD (Cutting Dia.) | 7 |
| ØD (Shaft Dia.) | 8 |
| l (Flute Length) | 20 |
| L (Overall Length) | 60 |
| r (Radius) | 0.5 |
8mm x 1.00mm 4 Flute Coated Carbide Corner Radius Standard Length End Mill – DXC4080-060-08-R1.0 (Sangeo)
The Sangeo DXC series Coated Carbide milling cutters have 4 flutes and come with a plain shank. These corner radius end mills are available in diameters ranging from 2mm-20mm. These are ideal for general machining of steels up to HRc55, stainless steel, cast iron, copper and aluminium.
- High quality micrograin carbide.
- PVD coating with high heat and wear resistance across a wide range of metals.
- Dry cutting on steels can increase tool life up to 50%
- Consistent and reliable performance in general machining conditions.
- Designed for milling of radius bottom slots, fillets and special contours.
| ØD (Cutting Dia.) | 7 |
| ØD (Shaft Dia.) | 8 |
| l (Flute Length) | 20 |
| L (Overall Length) | 60 |
| r (Radius) | 1.0 |
SOMW High Feed Indexable Milling Inserts (Sangeo)
10 pieces (Min. Order)
SOMW080315-FH PS5925 Indexable Carbide Milling Inserts. PS5925, feature tough PVD coated MT-TiCN+TiC+Al2O3+TiN layer on a P15-P35 / M10-M20 substrate for very high toughness. Sangeo’s range of milling inserts are made from a fine micrograin carbide substrate for excellent toughness and performance.- SOMW style carbide milling inserts
- PS5930 / PS5915 / PS5915S / PS5925 Grade: Steel/Hard Steel
- Positive geometry
- Square shape
- Universal grade for interrupted machining of steel, cast-iron, hard to cut materials and stainless steel with stable machinability
- New coating layer with superior wear resistance with high toughness substrate
