Product Information
Features & Benefits

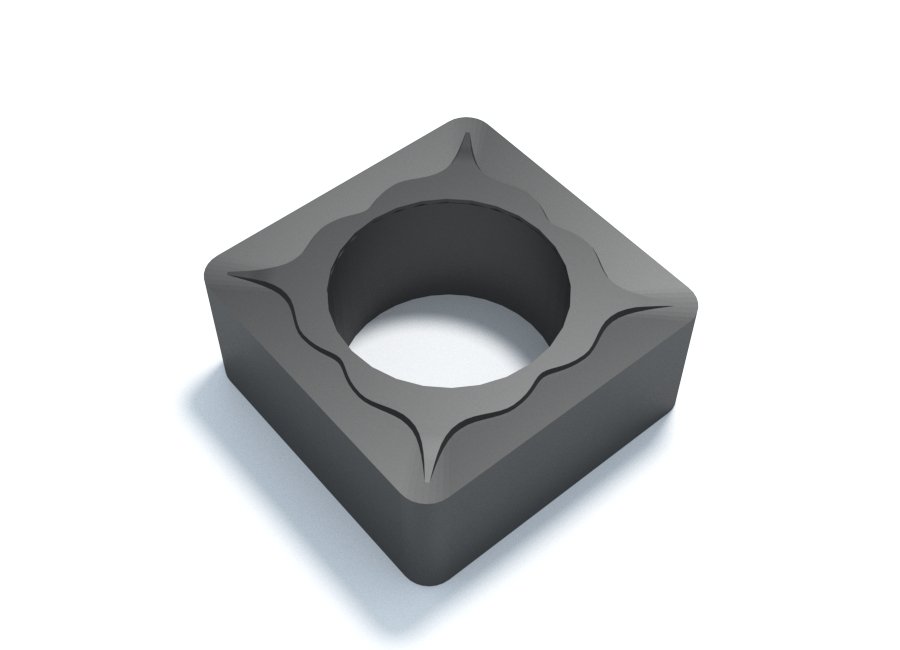

The SCMT09T304-HF CS5225 series carbide turning inserts have a Square shape and a Positive insert geometry. The HF chipbreaker is designed for Medium-Finishing applications and comes in a CS5225 grade ideal for P15-P35 Steel. Sangeo’s range of turning inserts are made from a fine micrograin carbide substrate for excellent toughness and performance.
- SCMT style Carbide Turning Inserts
- CS5225 is the first recommended grade for general machining with the use of high toughness substrate and coating layer with improved welding/chipping resistance
- Positive Geometry
- HF chipbreaker designed for Medium to finishing of steel with positive geometry inserts. Sharp cutting edge and wide chip pocket for low cutting load. Excellent surface finish
- Square Shape
Specification
| Brand | Sangeo |
|---|---|
| Relief Angle | 7° |
| Shape – Degrees | Square |
| Insert Geometry | Positive |
| Applicable Materials | Steel |
| Chipbreaker | HF (Medium-Finishing) |
| Product Range | Carbide Turning Inserts |
| Grade Description | CS5225 (P15-P35 Steel) |
| Grade | CS5225 (Steel) |
| r (Radius) | 0.4 |
| Insert Style | SCMT |
| T (Thickness) | 3 |
| IC (Length) | 9 |
| ISO Code | SCMT09T304 |
