Product Information
Features & Benefits

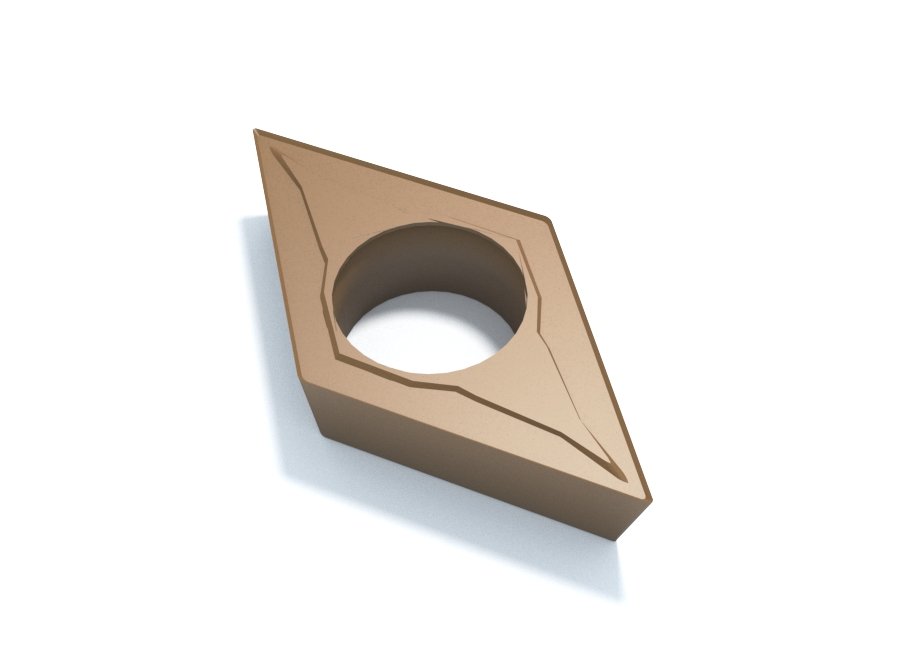

The DCGT11T304-SF PS7220S series carbide turning inserts have a Rhombic 55° shape and a Positive insert geometry. The SF chipbreaker is designed for Medium-Finishing applications and comes in a PS7220S grade ideal for M10-M30 Stainless Steel / S10-S25 HRSA’s / K10-K20 Cast Iron / H05-H10 Hardened Steels. Sangeo’s range of turning inserts are made from a fine micrograin carbide substrate for excellent toughness and performance.
- PS7220S excellent in medium speed machining of stainless steel. As adapting Salina coating which has excellent resistance for thermal & oxidation
- SF chipbreaker is the first choice chipbreaker for positive geometry inserts for stainless steel, cast iron and exotics
- DCGT style Carbide Turning Inserts
- Positive Geometry
- Rhombic 55° Shape
Specification
| Brand | Sangeo |
| Relief Angle | 7° |
| Shape – Degrees | Rhombic 55° |
| Insert Geometry | Positive |
| Applicable Materials | Cast Iron, Exotics, Hardened Steel, Stainless Steel |
| Chipbreaker | SF (Medium-Finishing) |
| Product Range | Carbide Turning Inserts |
| Grade Description | PS7220S (M10-M30 Stainless Steel / S10-S25 HRSA’s / K10-K20 Cast Iron / H05-H10 Hardened Steels) |
| Grade | PS7220S (Stainless Steel, HRSA’s, Cast Iron & Hardened Steel) |
| r (Radius) | 0.4 |
| Insert Style | DCGT |
| T (Thickness) | 3 |
| IC (Length) | 11 |
| ISO Code | DCGT11T304 |
